Storz Brass Coupling - DIN Standard
AED 110.00
Size
In stock
Product Details

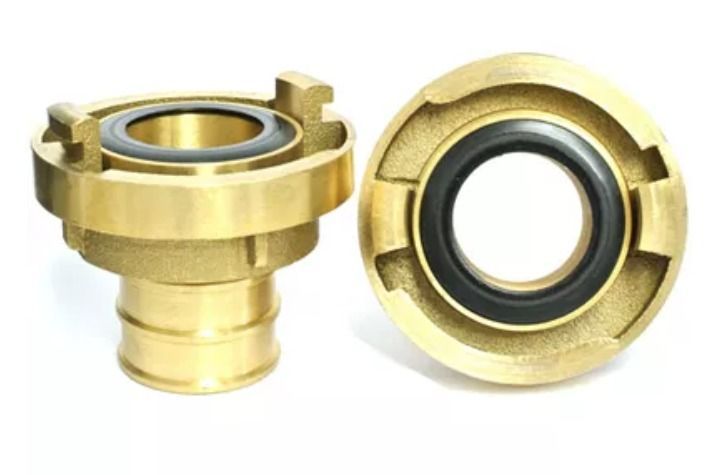

PRODUCT INTRODUCTION: Storz coupling is a symmetrical, quarter-turn, sexless coupling—meaning both ends are identical (no male/female ends) and connect with a simple twist. They are used as end fittings for various types of hoses such as fire fighting hoses, water hoses, etc.
Specifications to be considered during order
Diameter of the outlet - 40mm / 50mm / 65mm / 75mm
Diameter of tail for connection in hose. It can be same as out outlet or reducer type where the tail is less than the outlet size - 40mm / 50mm / 65mm / 75mm
Material - Brass / Aluminum
Inner Lug Size - Different for DIN and China Standards
OPERATION:
The two identical halves are pushed together.
They are then rotated approximately 120 degrees (about a quarter-turn) to lock into place.
Internal claws or lugs engage with each other during the twist to form a tight seal.
BENEFITS:
Quick connection/disconnection (ideal in emergencies).
No gendered ends, so you don’t need to worry about male/female couplings.
Forms a tight seal, often with a gasket, to prevent leaks.
Can be used in high-pressure applications.
