Self Container Breathing Apparatus (SCBA)
PRODUCT INTRODUCTION

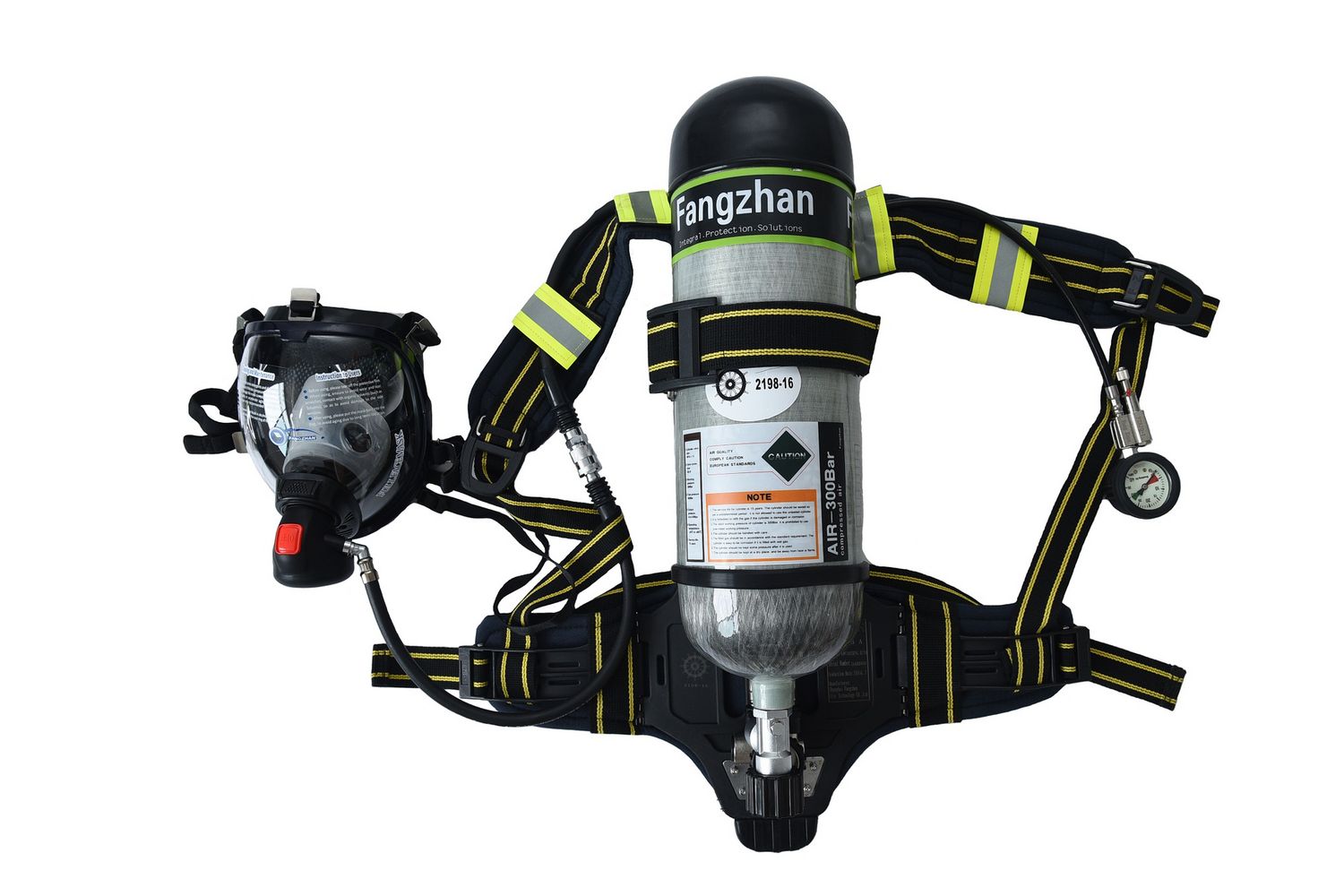

The RHZK SCBA is an open circuit, self-contained, compressed air breathing apparatus. It consists of back plate, carrying harness and pneumatic system, consisting of a cylinder connector, regulator, pressure gauge, whistle and demand valve.
APPLICATIONS
The RHZK is specifically designed as a Professional Fire Fighting SCBA, but is also suitable for providing respiratory protection in an immediately dangerous to life or heath atmosphere. (IDLH).
APPROVAL INFORMATION
MED Approval, EN136 (1998) including AC (2003); EN137(2006); ISO23269-2:2011 PPE Approval EN137:2006 & EN 136:1998+AC:2003:
MATERIALS
Low pressure hose --- EPDM
High Pressure Gauge --- Polycarbonate lens
High Pressure Gauge Cover --- Rubber
Demand Valve Hose Fitting --- Stainless Steel
Face Mask --- Silicone
High Pressure Hose
Harness
Cylinder Band --- Fire Retardant Material
Strap Buckles --- Fire Retardant Material
Cylinder Valve --- Nickel Plated Brass
MAINTENANCE
Maintenance and Servicing must only be performed by trained personnel following the procedures in the Service and Maintenance manual.
TECHNICAL SPECIFICATION
Opening pressure for relief valve --- 1.2+/-0.2MPa
Working temperature --- -30℃-+60℃
Type --- Dynamic equilibrium type
Flow restrictor to gauge supply hose --- <25Litres minute
Stainless steel swivel hose fittings
Medium Pressure Hose
Maximum working pressure -- 2MPa
Minimum burst pressure -- 1MPa
High Pressure Hose
Maximum working pressure -- 400Bar
Minimum burst pressure -- 600Bar
Weight/Dimensions
With orange carrying case -- 75*50*30cm -- 21kg ( Empty steel cylinder)
-- 75*50*30cm -- 4kg ( Empty composite cylinder)
MAKE: Fangzhan China
