Radar Reflector metal fabricated

PRODUCT INTRODUCTION

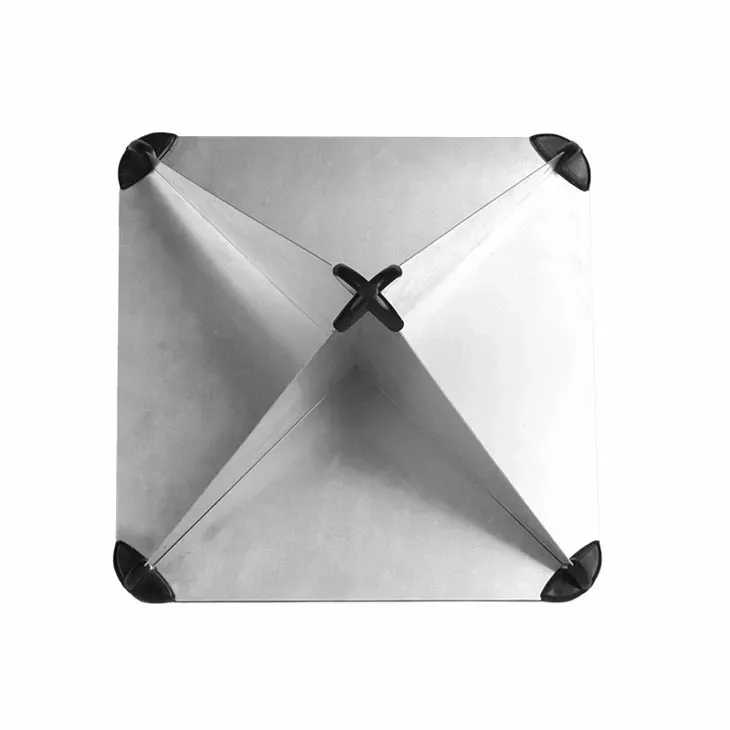

Marine radar reflector is mainly used in life-saving equipment such as lifeboats or rafts. The purpose is to facilitate search of the target quickly for radar as a lifesaving device. Its performance meets the technical requirements of ISO8729-1997 (e) and IMO-a-384 Resolution. Made of aluminum alloy, protected by plastic head good structure and reflectivity, light and small, no power needed, and safe. It can increase the chance of trapped people being found out.

TECHNICAL PARAMETERS

INSTALLATION

For rescue of lifeboats, rafts and small boats, it consists of a metal central shaft with four pairs of axle sleeve splint rings at both ends. Each pair of axle sleeve splint rings is clamped and fixed with a vertically positioned vertical reflection conductor, and the four vertical reflection conductors are determined by a fixed angle ring at the upper and lower ends. The transverse reflector conductor is connected with the vertical reflector conductor through a slot. The two transverse reflectors are joined into a complete circular shape which is arranged horizontally, and the vertical reflector conductor is composed of the transverse reflector and the transverse reflector conductor. Eight three sided right angle reflecting spaces. When using at least 3 meters away from the horizontal surface, fix it with a fixed object to achieve the best results. The boat and raft each equip 1unit.

PRINCIPLE

Corner reflectors are different types of marine radar reflector made of metal plates. When the radar electromagnetic wave is scanned to the radar reflector, the electromagnetic wave will produce refraction amplification at the metal angle, producing a strong echo signal, and a strong echo target appears on the radar screen.
