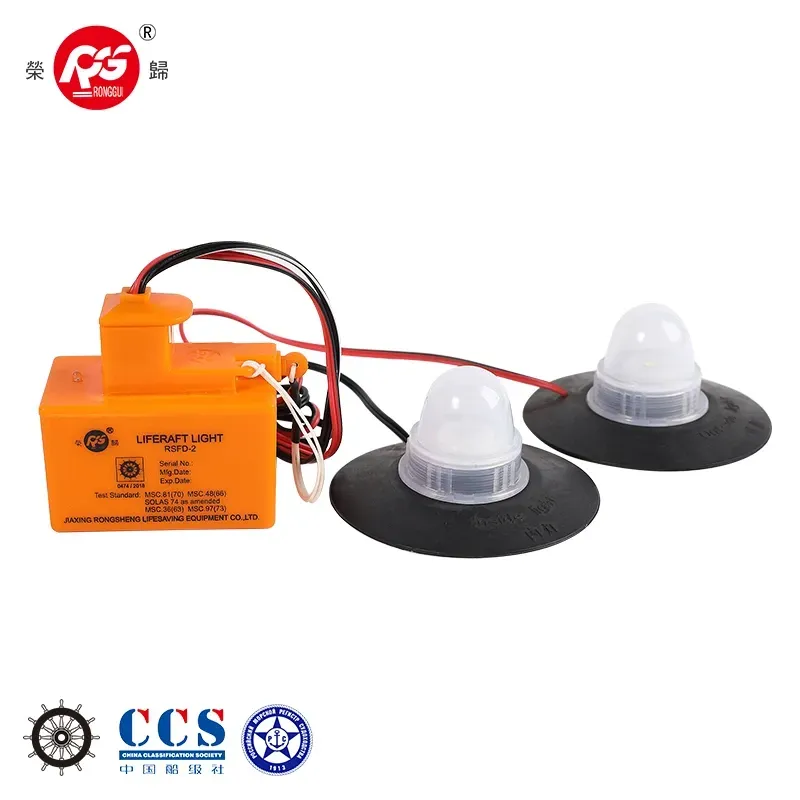

Liferaft Light RSFD-2

PRODUCT INTRODUCION

Flash light is adopted for position - indicationg light, and lastinglight for internal light. liferaft light RSFD-2 battery, adopt artificial switch, can off randomly. The single battery of position-indication light and internal light can be exchange. The length of switch pulling line should be adjusted to different type of liferaft. When liferaft inflated, can pull out switch pin, light working.

PRODUCT PERFORMANCE

Flash light is adopted for position - indicationg light, and lastinglight for internal light. liferaft light RSFD-2 battery, adopt artificial switch, can off randomly. The single battery of position-indication light and internal light can be exchange. The length of switch pulling line should be adjusted to different type of liferaft. When liferaft inflated, can pull out switch pin, light working.

TECHNICAL PARAMETERS

MAJOR TECHNICAL PARAMETERS

Lighting Period	≥12h	Frequency of Flash	50-70 Flashes/min
Luminous Intensity of Exterior Light	≥4.3 cd	Luminous style of Exterior Light	Flash
Luminous Intersity of lnterior Light	≥0.5 cd	Luminous style of lnterior Light	Always
Battery	Lithum Battery	Term of Validity	5 Years

INSTALLATION

The battery should be placed in the battery bag which is bonding on the top of column.

The position-indication light should be installed on the top of column of liferaft canopy3)

Internal light should be installed on the below of the column or upper of column of inside liferaft. The pulling line of switch should be tied on column or buoyancy tires and proper position of rope column of liferaft.

CAUTIONS

To avodi explosion and keep away from fire spots

Compare with liferaft light RSFD-2, liferaft light RSFD-3
