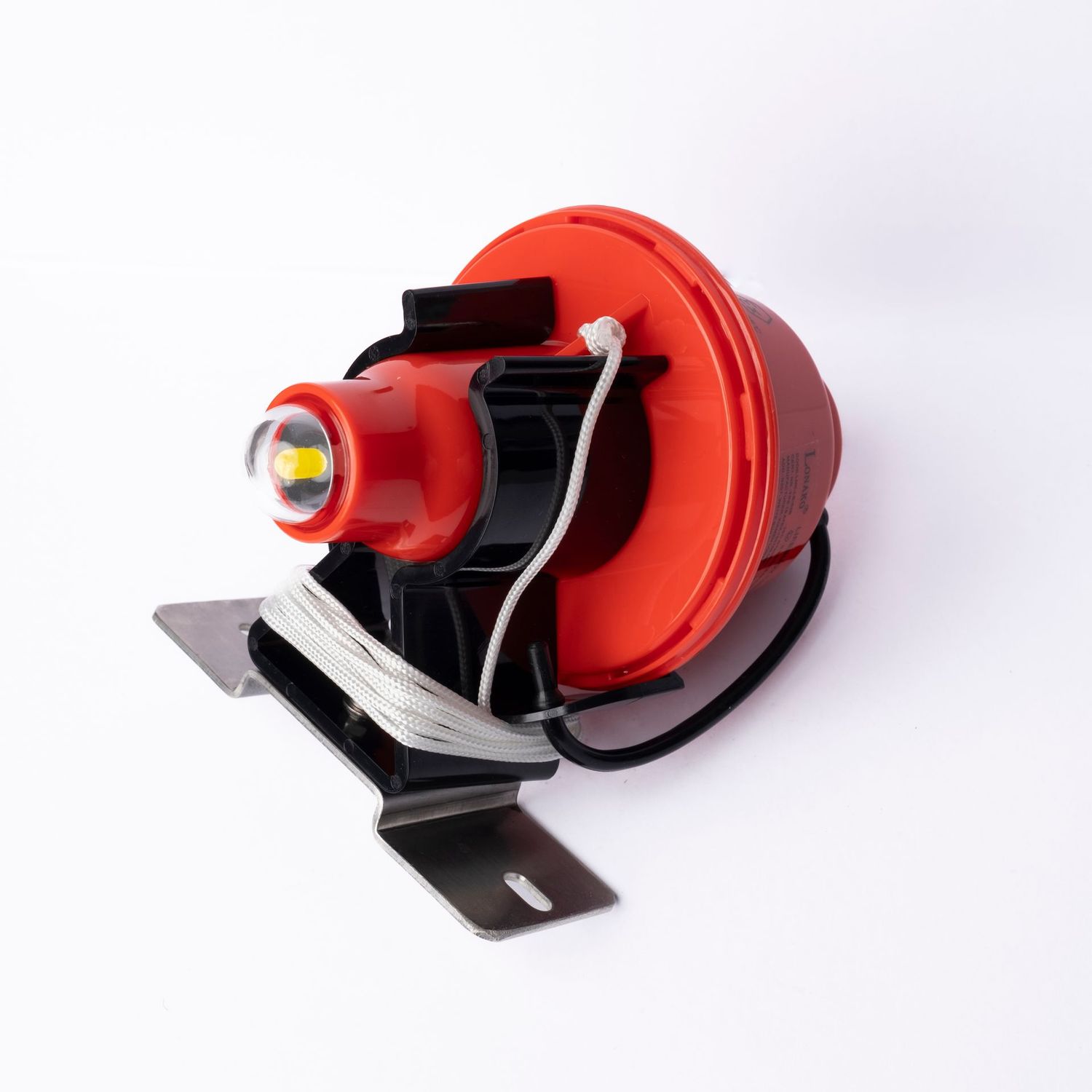

Lifebuoy Light-ATEX
PRODUCT INTRODUCTION: It is a suitable lifesaving device for hazardous marine activity applications such as offshore drill platform, oil tanks etc. The light was designed with gravity sensor and water sensors double activation system. Once the lifebuoy light is thrown into water with lifebuoy, the head of LED lamp will automatically upwards owing to the gravity design, and the water sensors will contact water then activate the light immediately. If the head of LED lamp downwards or the light leaves from water, the light will automatically turn-off.
Suitable for hazardous Zones 0 1 and 2
Operating life ≥20 hrs at over 2cd (15h at -1℃)
Water sensors and gravity double activation system no inadvertent activation risk
Automatic ON in water Automatic OFF after leaves water
Supplied with universal retrofit Adopter to realize one step mounting
Robust and resist 76 meters drop height test
| Technical Parameter |
Specification |
| Battery Type |
Lithium battery |
| Light Source |
LONAKO patented LED |
| Chromaticity |
White |
| Light Type |
Flashing |
| Flash Frequency |
50～70times/min |
| Luminous Intensity |
≥2.0 cd |
| Operation Life |
≥20h over 2.0 cd (15h at -1℃) |
| Maximum Stowage Height |
76 meters |
| Storage Temperature |
-35℃ ～ +85℃ |
| Working Temperature |
-1℃ ～ +30℃ |
| Expiry Date |
5 years from date of manufacture |
| Weight |
Light Weight: 182g Bracket Weight: 110g( Including 304 stainless steel support) |
| Dimensions |
Main Body: Φ90*133mm |
| Activation |
Automatically turn on when the LED lamp is upright & and water sensors contact water simultaneously; Automatically turn off otherwise |
| Performance |
Fire-resistant, Oil-resistant, Mould-proof, Corrosion-proof, Waterproof, Dust-proof, UV-Resistant |
| Environment Performance |
Meet RoHS and asbestos-free requirement |
| Standards |
IMO Res.MSC.81(70), as amended, lEC 60945:2002 incl. lEC 60945 Corr.1:2008, IS0 24408:2005, USCG 161.110, EN 60079-0: 2018, EN 60079-11: 2012, EN 60079-28:2015, IEC 60079-0:2017, IEC 60079-11:2011,IEC 60079-28:2015. |
| Certifications |
MED & USCG; ATEX & IECEx |
| Ex Marking |
ExII 1G Ex ia op is IIC T4 Ga -35℃≤Ta≤85℃ (Zone 0,1,2) |
MAKE: Lonako, China
