Inflatable Radar Reflector

PRODUCT INTRODUCTION

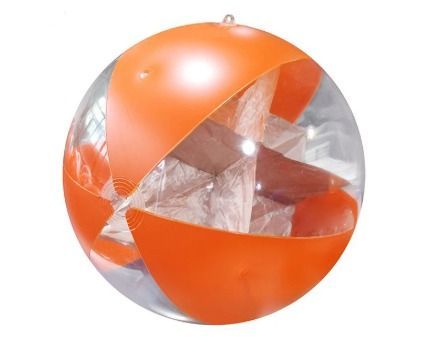

This is a fordable and inflatable radar reflector. It is an essential accessory for life-saving boats. It is an omnidirectional passive device that enhances the echo of small radar targets and is used for rescue in times of distress at sea. It's outer layer is made of high density polymer ,bult in metal mesh.

TECHNICAL PARAMETERS

Volume (inflated):	Dimensions:	Weight:	Radar Echo:
0.05m3	460mm	200g	≥7.5m2 (x-band) ≥0.5m2 (s-band)

INSTRUCTIONS FOR USE

1. Take the radar reflector out of the plastic sealed bag.

2. Use an inflator or mouth to inflate until the ball is elastic (do not overfill). If you use an inflatable device to inflate, do so slowly to avoid damage to the reflective material inside the ball.

3. It should be placed outside the life raft's tent pole (choose a high point) or the highest point in the life raft.

4. This product must be inspected every year to ensure that the reflective material inside the ball is not damaged. If the ball has no obvious leakage, it is qualified.

5. The radar reflector should be stored in a dry and ventilated place to avoid mixing with acids, alkalis, oils, etc. in the environment, as well as bath chemical products and corrosive gases that may damage the radar reflector. Storage should avoid heavy collision with sharp objects. pressure.
