Breath Alcohol Detector (Contact-free) iblow10

PRODUCT INTRODUCTION:

The New Fuelcell Rapid Screening Breathalyz

FEATURES:

• Wide LED lighting according to test result
• Built-in magnet
• 2 types of display mode: -Numeric display
  -Zero-Low-Hi display
• Calibration reminder function
• Calibration protection through PC software
• User changeable setting mode
• 5,000 test available with new alkaline battery

Replaceable blow cap for hygienic use

SPECIFICATION:

Sensor Type: SuracellTM sensor (Fuel Cell sensor)

Battery : AA Size Alkaline Battery 6EA Or Rechargeable Battery 6EA

Weight : 370g (Including batteries)

Size (mm) : 276(Height) X 44.5(Width) X 44.5(Thickness)

Test result:-

LED Alert - Pass : Green / Low : Red / High : Blinking Red

FND display : 0.00/Lo/Hi or Numerical result

(Display “HI” in Numerical result mode means more than 1.00 g/l)

Buzzer alarm : Pass : 1 time of Beep sound

Low : Repeating short Beep sound

High :Repeating long Beep sound

Warming up time: Within 10 seconds

Time for analysis: Within 2 seconds (at 0.00 concentration)

Maximum test: 12 times / 1 minute

Working temperature :-05°C ~ 55°C

Storage:-10°C ~ 60°C

Mouthpiece: Blow cap (Replaceable & washable passive cone type)

Auto power OFF: Adjustable 30 to 900 seconds

Duration time for display: Adjustable 1 to 9 seconds

Calibration period: Every 5,000 tests or 12 months whichever comes first (Factory Default)

Additional Function: Reminder for calibration & Grace period

Calibration protection by PC connecting

LED lighting

PACKAGE

Aluminum package contents:

-1pc Manual (EN/ES) -1pc Aluminum case

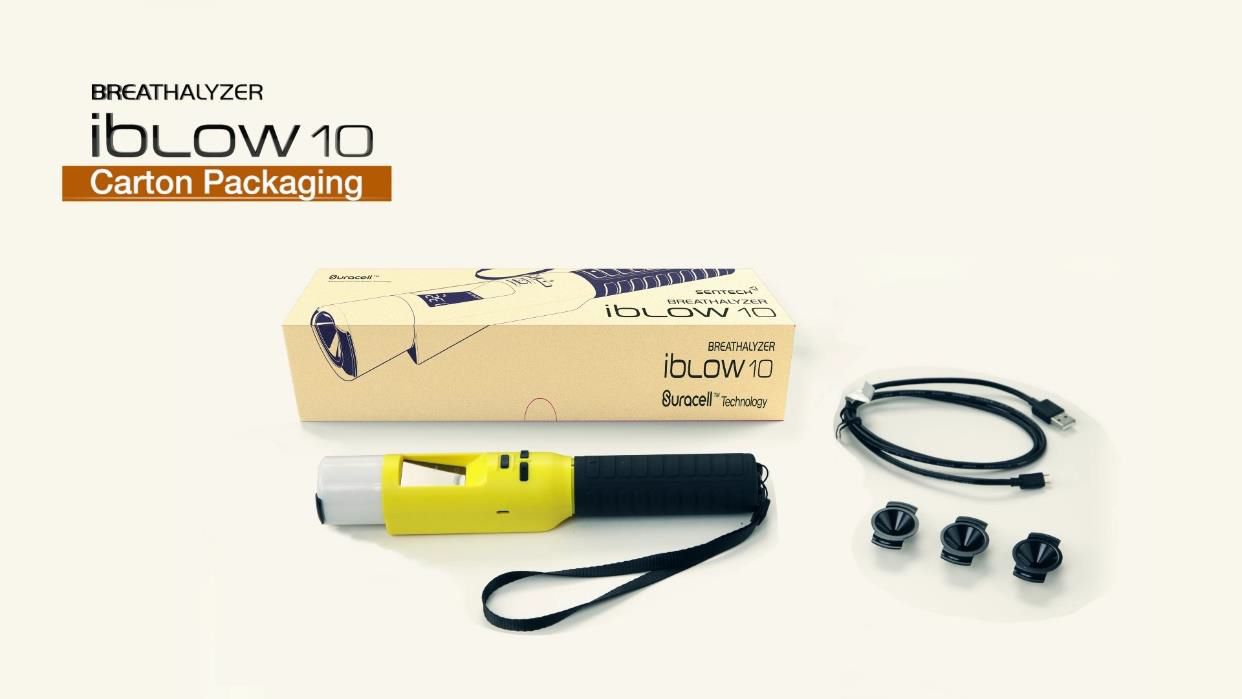

Carton package contents:

-1pc Manual (EN/ES) -1pc Sealing sticker

-1pc Carton package
